Tower Hoist & Winch

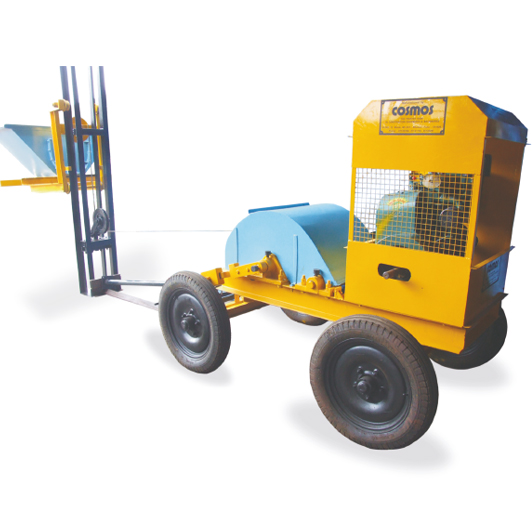

This is the most essential arrangement for placing slab concrete for multistoried buildings. It consists of friction winch driven by diesel engine. The pulley placed on the top of the tower engages bucket by means of wire rope. By engaging friction rollers the drum rotates, which in turn provides motion to wire rope. The tower consists of modular angle frames that can be joined to provide suitable height.
Specifications
Explore detailed product specifications for informed decisions. From dimensions to materials, our parameters empower your professional choices.
| SPECIFICATIONS | UNIT | T H 20 | T H 30 | T H 40 |
|---|---|---|---|---|
| Max lifting height | Meter | 20 | 30 | 40 |
| Capacity including crrage & skip unit | Kgs | 1000 | 1000 | 1000 |
| Bucket / skip capacity | Cubic feet | 7 | 7 | 7 |
| Prime mover | Diesele Engine air Cooled | 12.5 hp | 12.5 hp | 12.5 or (16 Optional ) |
| > | Eletric Motor | 10 | 15 | 15 |
| Wire rope | Dia in mm / length in meters | 12mm /D70 60 | 12mm / 90 | 12mm / 120 |
| Skip travelling speed | Meter per min | 30 | 30 | 30 |
| Brake | 2 nos | Mechanical Liner type | Mechanical Liner type | Mechanical Liner type |
| Transportation | Pneumatic wheels 4 nos | * | * | * |
| Dimension of the winch | LXWXH in Meters |
