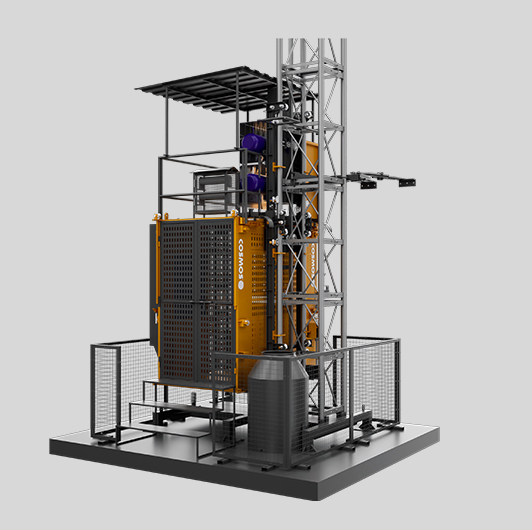

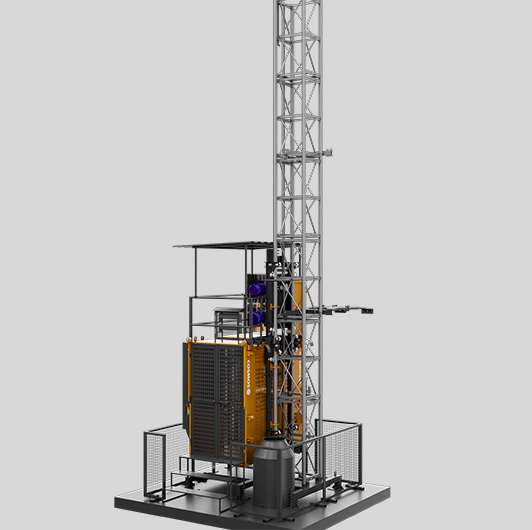

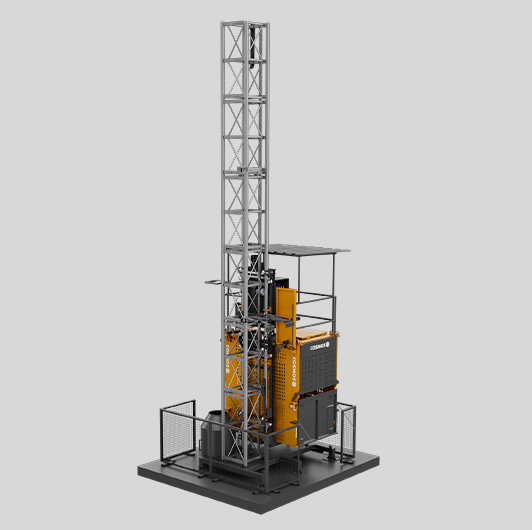

Passenger Cum Material Lift
Carrying a variety of material up and down a building under construction is not only a hectic activity, it also burn down the valuable construction time. Carrying a variety of material on the construction site is not the only hectic but burns down the construction time too. You can choose from a range of these easy-to-install and easy-to-use vertical handling systems.
FEATURES
Discover distinctive features that define our products, ranging from exceptional performance to unmatched capabilities. Understand what sets us apart and contributes to your experience.
- Traveling speed up to 30 meters per minute
- Doors on three sides
- Rack from inside the cabin
- Two crane-duty planetary motors
- Centrifugal brake & best quality core cables
- Full enclosed & half open cabin options
- Easy installation & raising
Specifications
Explore detailed product specifications for informed decisions. From dimensions to materials, our parameters empower your professional choices.
| ITEM | |
|---|---|
| Shifting Mechanisam | Rack and pinion |
| Max load capacity | 1000 kg / 12 Person |
| Lifting Speed | 26 meter/min |
| Cabin Length | 2 Meters |
| Cabin width | 1.3 Meters |
| Cabin Height | 2.1 Meters |
| Max lifting height | UPTO 150 meter |
| Power | 2*10 hp |
| Gear Box | Heavy Duty Warm Helical Gear Box |
| Brake | Elecromagnatic Type |
| Rack and Pinion | 8 Module |
| Door | 3 ( Sliding and Opning type ) |
| Metal guide roller | 27 ( 24 + 3 ) |
| Mast Weight | 103 kg |
| Anchoring Distance | 6 meters |
| Winch for Column Erection | Yes |
| Platform Erection | Yes |
| Door innter lock | By limit switch |
| Upper Limit | 4 nos |
| Lower limit | 2 nos |
| Speed High/Low Limit | 1 Nos |
| Barricade at base | Yes |
| Fall safe divice | Yes 1 nos |
| Emergency Stop | Yes |
| Electromagnatic Break | 2 nos |
| Buzzer during down travel | Yes |
| VFD | 25 HP |
| Main Switch | Rotatory Type |
| Alarm | Safety brake Active / manual opration |
| Light | Yes |
| Fan | Yes |
| Power Cable | Rubber coated 6sq.mm, 4 core |
| Electrical inter lock | Yes limit switch |
| Opration Mode | Auto and Manual |
