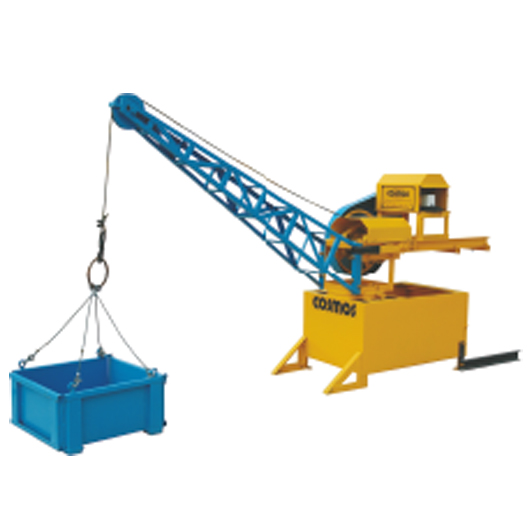

Mini Lift
This is the most essential arrangement for placing slab concrete for multistoried buildings. It consists of friction winch driven by diesel engine. The pulley placed on the top of the tower engages bucket by means of wire rope. By engaging friction rollers the drum rotates, which in turn provides motion to wire rope. The tower consists of modular angle frames that can be joined to provide suitable height.
Specifications
Explore detailed product specifications for informed decisions. From dimensions to materials, our parameters empower your professional choices.
| SPECIFICATIONS | UNIT | 200KG | 500KG |
|---|---|---|---|
| Lifting Capacity | Kgs | 200 | 500 |
| lifting height | Meter | 30 | 30 |
| Prime Mover | Eletric Motor | 3H.p X 1 Phas | 5 HP. X3Phase |
| Wire Rope | Dia mm / length meter | 8mm / 33 | 10mm/33 |
| Lifting Speed | Meter / Min | 10 | 10 |
| Boom | Meter | 1.2 | 1.5 |
| Swing | Degree | 270 | 270 |
| Bucket Size | LXWXH in mm | 600x600x300 | 900x900x350 |
| Dimensions | LXWXH mm | 350x850x2100 | 420x850x2100 |
