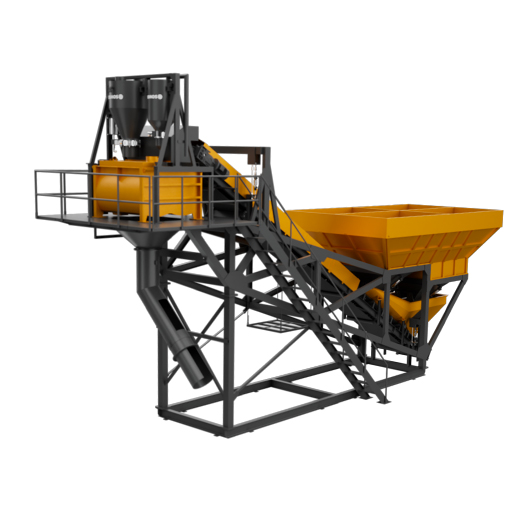

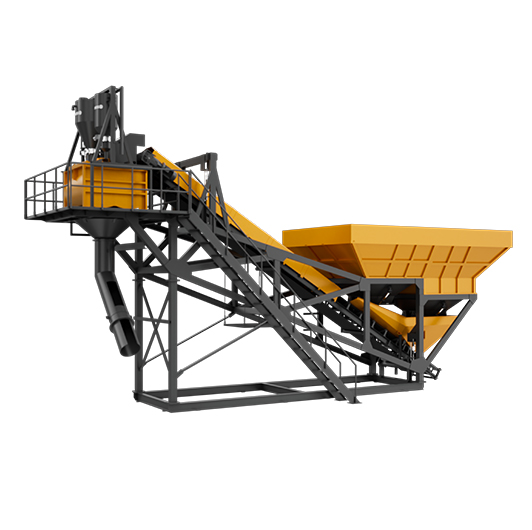

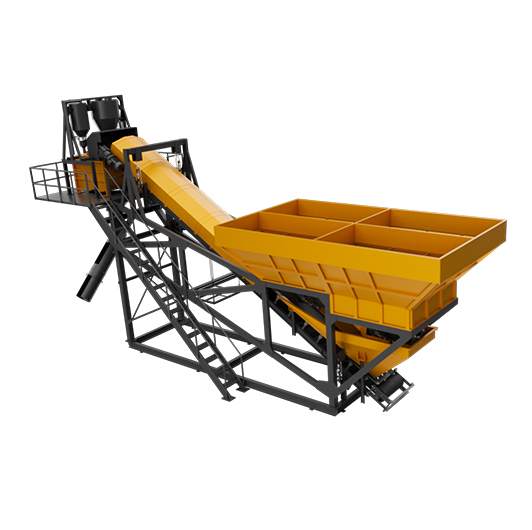

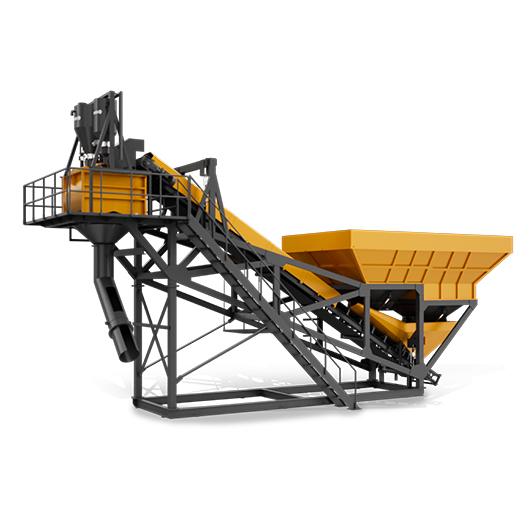

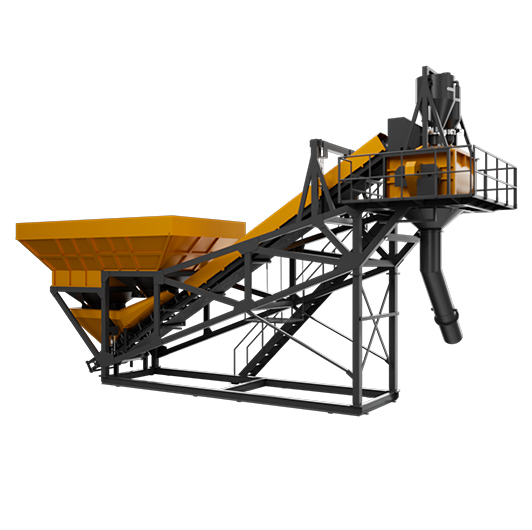

Inclined Batching Plant 30/45 M3
Weighing Screw conveyor It is driven by 5.5 HP 3 ph elec. motor with gear box. The set quality of cement per is weighed in weighing screw conveyor and then discharged to the mixing drum.
Specifications
Explore detailed product specifications for informed decisions. From dimensions to materials, our parameters empower your professional choices.
| ITEM | 30 M3 | 45 M3 |
|---|---|---|
| Plant capacity | 30 | 45 |
| Mixer | Twin shaft | Twin shaft |
| Main Mixer material input | 0.75 m3 | 1m3 |
| Mixer out put per batch | 0.5 m3 | 0.75 |
| Mixing cycle time | App. 60 Second | App. 60 Second |
| Mixer liner/Drum sheet life. | 40,000 m3 Concrete | 50,000 m3 |
| Mixer Transmission | Through Belt drive | Through Belt drive |
| Aggrigate and sand Bunker | 4 Bin Metal 20 m3 | 4 Bin 6M3 Each. =24m3 |
| Water weighing tank | 0.4m3 | 0.5 m3 |
| Cement weighing tank | 0.4 m3 | 0.5m3 |
| Add Mix jar | 4 liter capacity. | 4 liter capacity. |
| Weighing conveyor belt | 800mm wide 3 ply 10mm THK | 800mm wide 3 ply 10mm THK |
| Air compressor | 225 Ltrs Air Capacity | 225 Ltrs AirCapacity |
| Cement Screw Conveyor | 219 mm Dia | 219 mm Dia |
| Flyash Screw Conveyor | 219 mm Dia | 219 mm Dia |
| Mixe Motor | 12.5Hp X 2 = 25 | 15Hp X 2 = 30 |
| Weighing Conveyor Motor | 10 HP | 12.5 Hp |
| Air compressor Motor | 5 HP | 5 HP |
| Water pump | 2 HP | 2 HP |
| Addmix Pump | 1 HP | 1 HP |
| Cememnt screw conveyor Motor | 12 HP | 12 HP |
| Flyash screw conveyor Motor | 15 HP | 15 Hp |
| Bin Vibrator | 0.18 HP | 0.18HP |
| Pneumatic Vibrator for cememnt tank | P25 | P25 |
| Cement cone vibrator | 0.16 HP | 0.16 HP |
| Weighing Conveyor load cell | 2000 kg Capacity,S Type | 3000kg Capacity, S Type |
| Water tank Load cell | ||
| 500kg Capacity, Sandwich type | ||
| Cement tank Load cell | 500 Kg Capacity, Sandwich | 500 Kg Capacity, Sandwich |
| Admix Load cell | 50 Kg | 50 Kg |
| Cantrol Panel | PLC Cantrol Based | PLC Cantrol Based |
| Pneumatic Cylinder & Items | Make -Jenatics | Make -Jenatics |
| Printer | L x 300 | L x 300 |
| Off Line printing | Yes | Yes |
